Air Hose Retention System

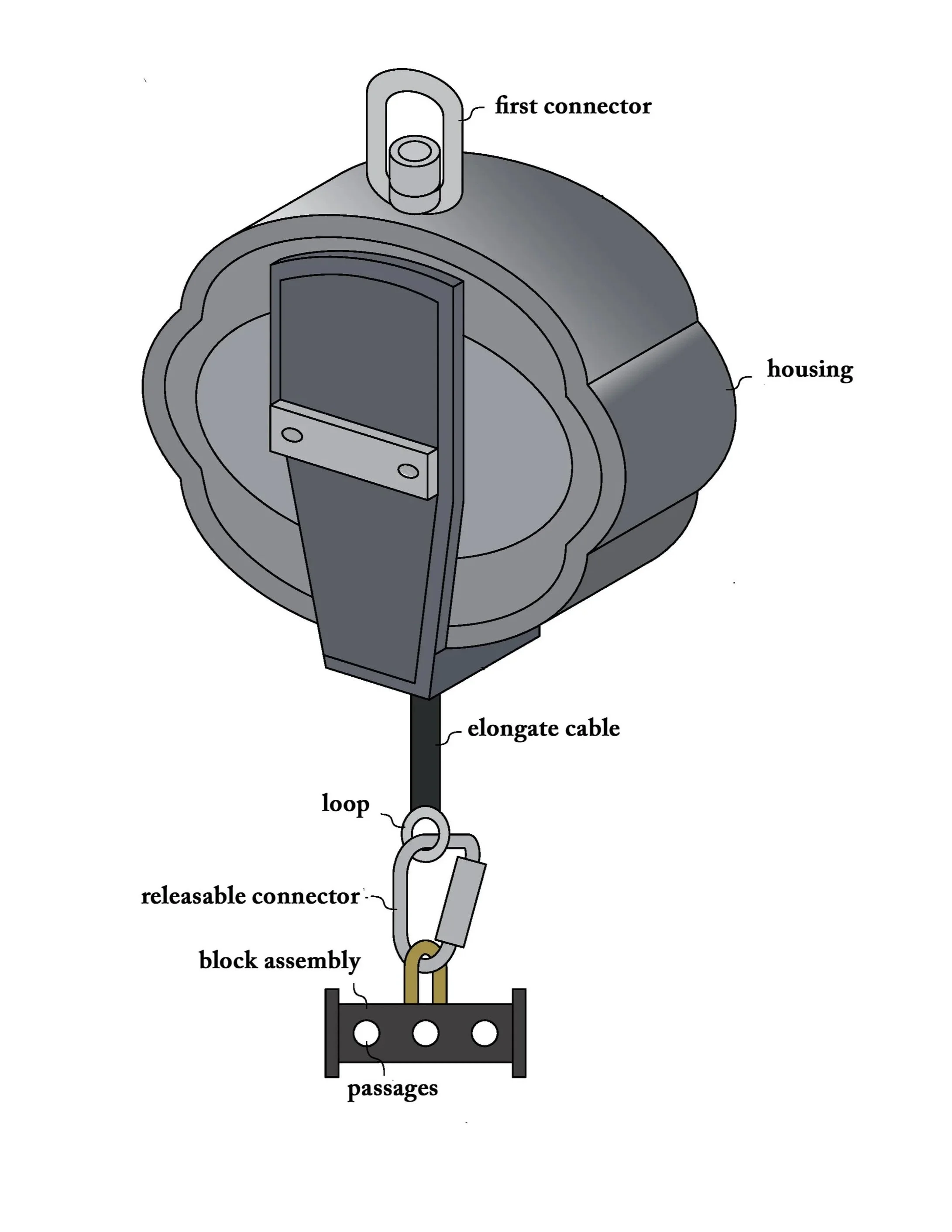

The Air Hose Retention Device is an innovative and efficient tool designed to improve the safety and organization of air hose connections between tractor cabs and trailers. The device features a pivotally mounted first connector attached to a top housing and an outer spool with a built-in receiving area that contains a coiled spring. A rotatable second side of the housing is connected to the first side, allowing smooth rotational movement as the cable is extended or retracted.
When the cable is pulled, the spool rotates in one direction, tightening the spring. As the cable is released, the spring automatically uncoils, retracting the cable and rotating the spool in the opposite direction to ensure neat and consistent winding. The cable is fitted with a releasable connector, making it easy to attach or detach from a trailer’s air hose without tools or complicated steps.
Designed with both convenience and durability in mind, the Air Hose Retention Device can be quickly disconnected from the cab and hose, allowing for compact storage or transportation inside the truck during nonuse. This device not only extends the life of air hoses by preventing tangles and unnecessary strain but also helps streamline operations for truck drivers and fleet managers looking for a dependable, low-maintenance hose management solution.
Special Features
Keeps air hoses elevated
Automatically extends and retracts
Easy to install
Improves safety
Protects equipment
Compact and portable
PRODUCT FEATURES & BENEFITS

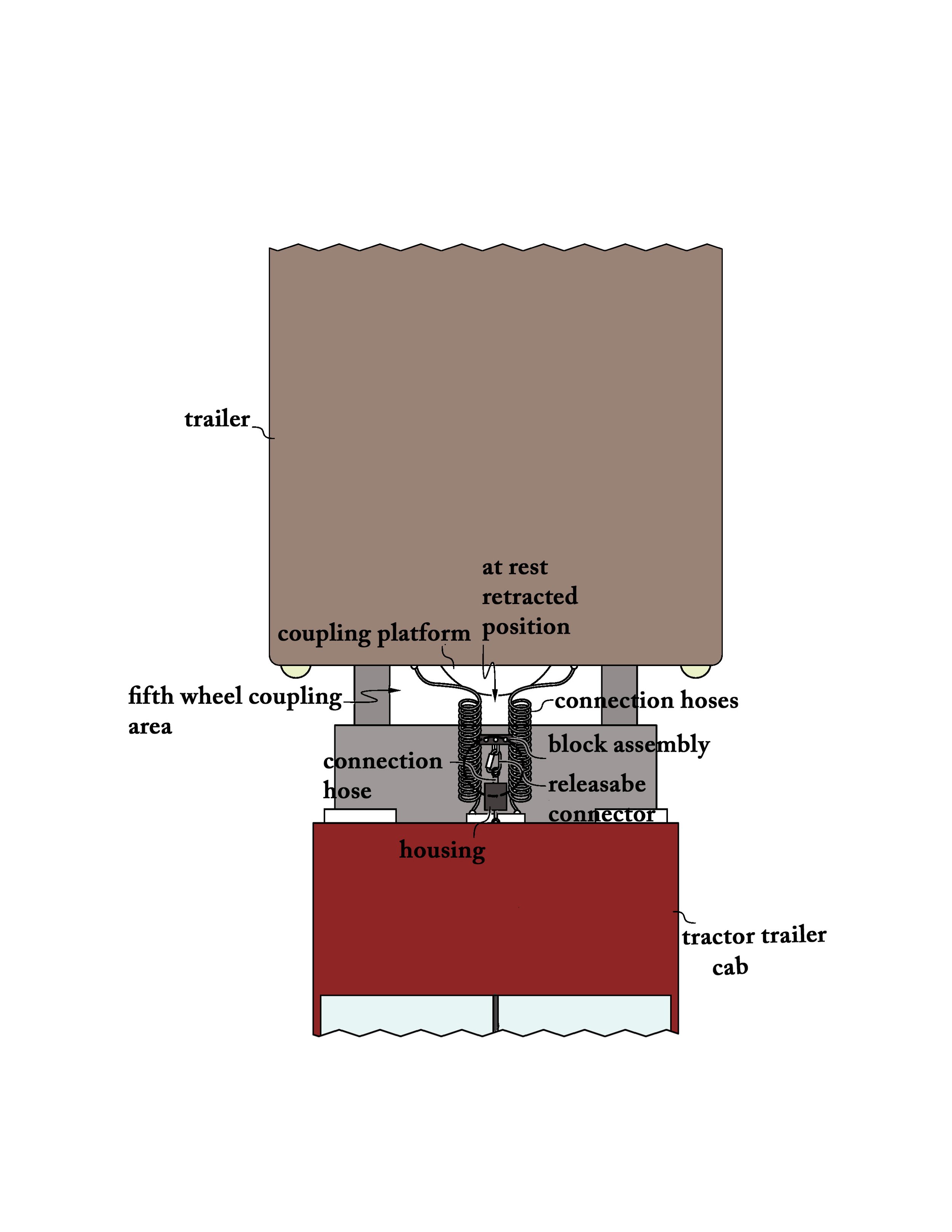

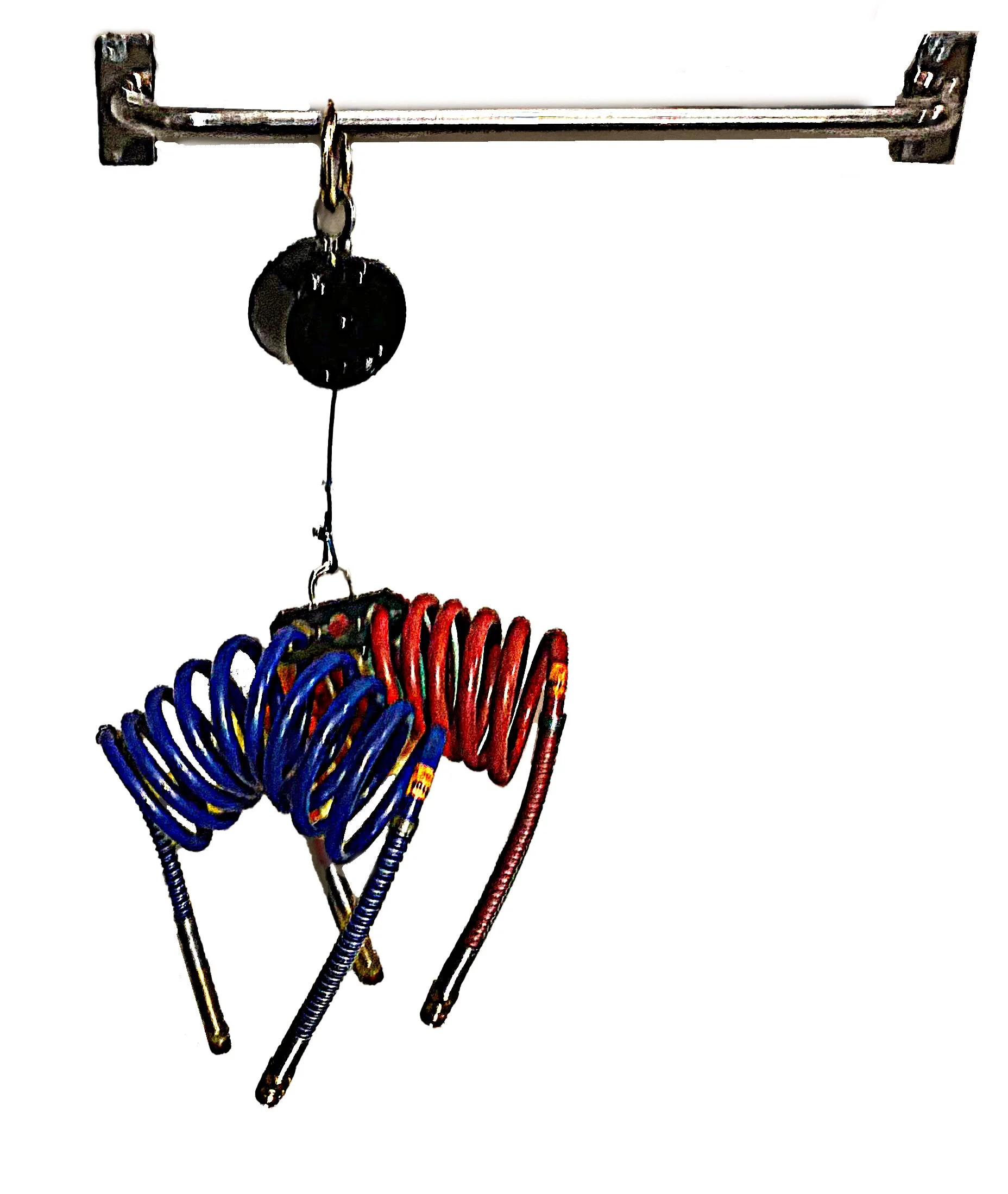

The Air Hose Retention System is designed to elevate and protect tractor-trailer connection hoses, ensuring they remain clear of the fifth wheel area during operation. This prevents dragging, twisting, and entanglement, which can cause premature hose damage and costly downtime. Its primary use is in heavy-duty trucking, where maintaining clean, elevated hose lines is critical for safety and efficiency.
The system uses a spool assembly with a small cable that extends and retracts smoothly as the truck moves. A tightly coiled spring provides the recoil mechanism, keeping hoses elevated whether the vehicle is driving straight, backing into a dock, or making sharp turns. This makes the Air Hose Retention System ideal for long-haul fleets, local delivery trucks, and any operation where trailer connection hoses are constantly in motion.
PRODUCT DETAILS
Durability is enhanced with a center bolt securing the spool and spring, and a small cable clamp that reinforces the interior connection point. A weather-resistant plastic cover shields the internal components from dust, debris, and environmental conditions, making it suitable for year-round use in all climates.
Externally, the small cable extends through the housing and connects via a loop or carabiner to a block assembly or bracket on the cab. By replacing outdated bungee cords and coil springs, the Air Hose Retention System provides truck operators with a reliable, long-lasting solution that reduces hose wear, increases operational safety, and lowers maintenance costs.
Materials needed to produce the Air Hose Retention Device:
· Spool
·Small cable
·Spring
·Center bolt
·Small cable clamp and plastic cover
The Air Hose Retention System can elevate your product portfolio to new heights. We are seeking a long-term arrangement with a company to manufacture, market, and/or distribute this new technology based on the acquisition of the intellectual property rights . Contact us below
Contact Us
Our VP of Business Development, Amy Schleicher, is ready to answer any questions you may have.
Phone: 913-201-8025
E-mail: Amy@bankonip.com

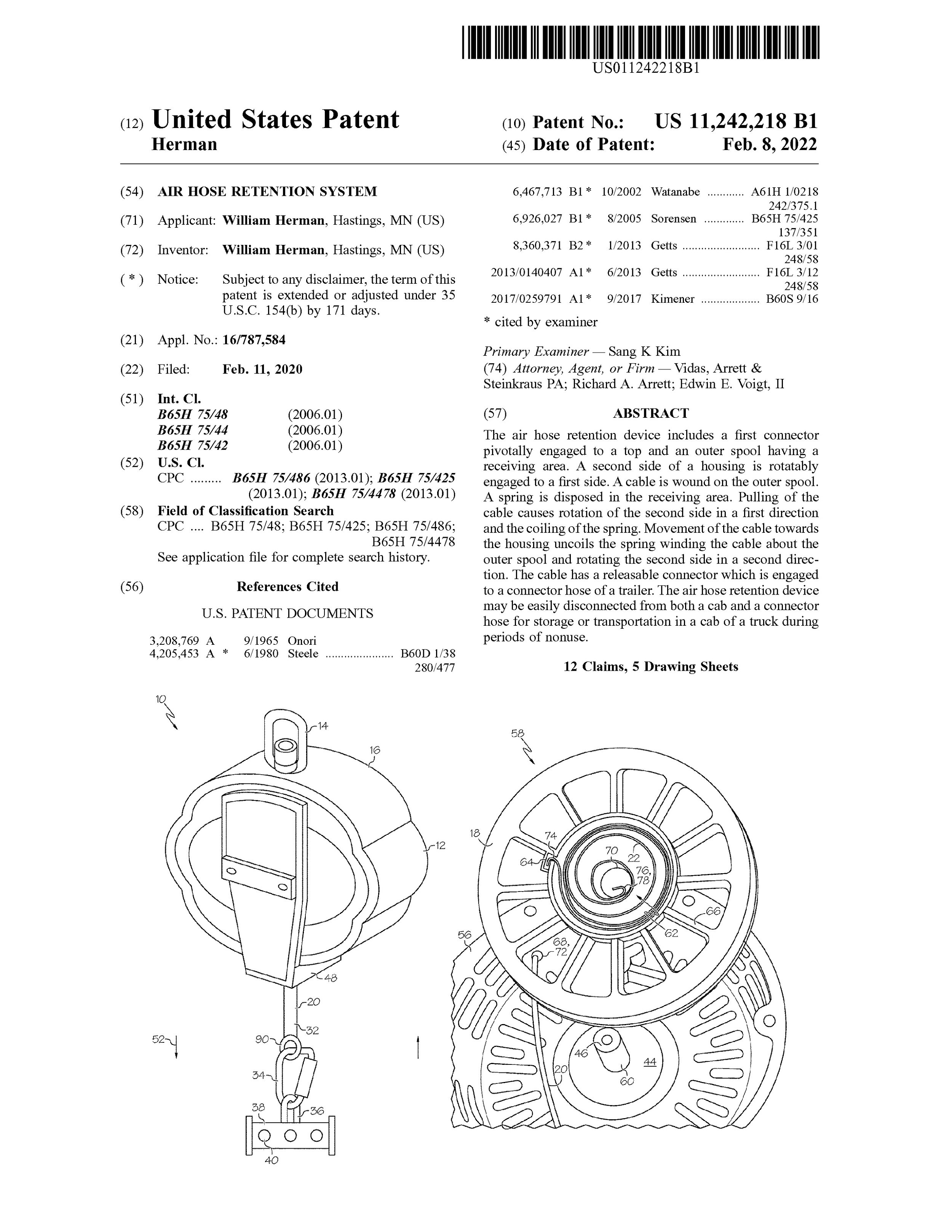

Patent Information
Patent
Inventor Highlight
William Herman is a hardworking farmer, skilled mechanic, and trucking enthusiast whose life is rooted in hands-on dedication and practical know-how. With years of experience tending to the land, repairing machinery, and keeping equipment in top condition, he has built a reputation for resilience and problem-solving. His passion for trucking ties his skills together, giving him a deep appreciation for the machines that drive both farming and transportation. Whether in the field, the shop, or on the road, William brings a strong work ethic and a commitment to getting the job done right.
Social Media
Follow us in real time! Stay connected.
“There’s a way to do it better—find it”
